*NEW* deegee MIH IP65 2-way Traffic Light
*NEW* deegee MIH IP65 2-way Traffic Light
Couldn't load pickup availability
*NEW* deegee MIH IP65 2-way Traffic Light

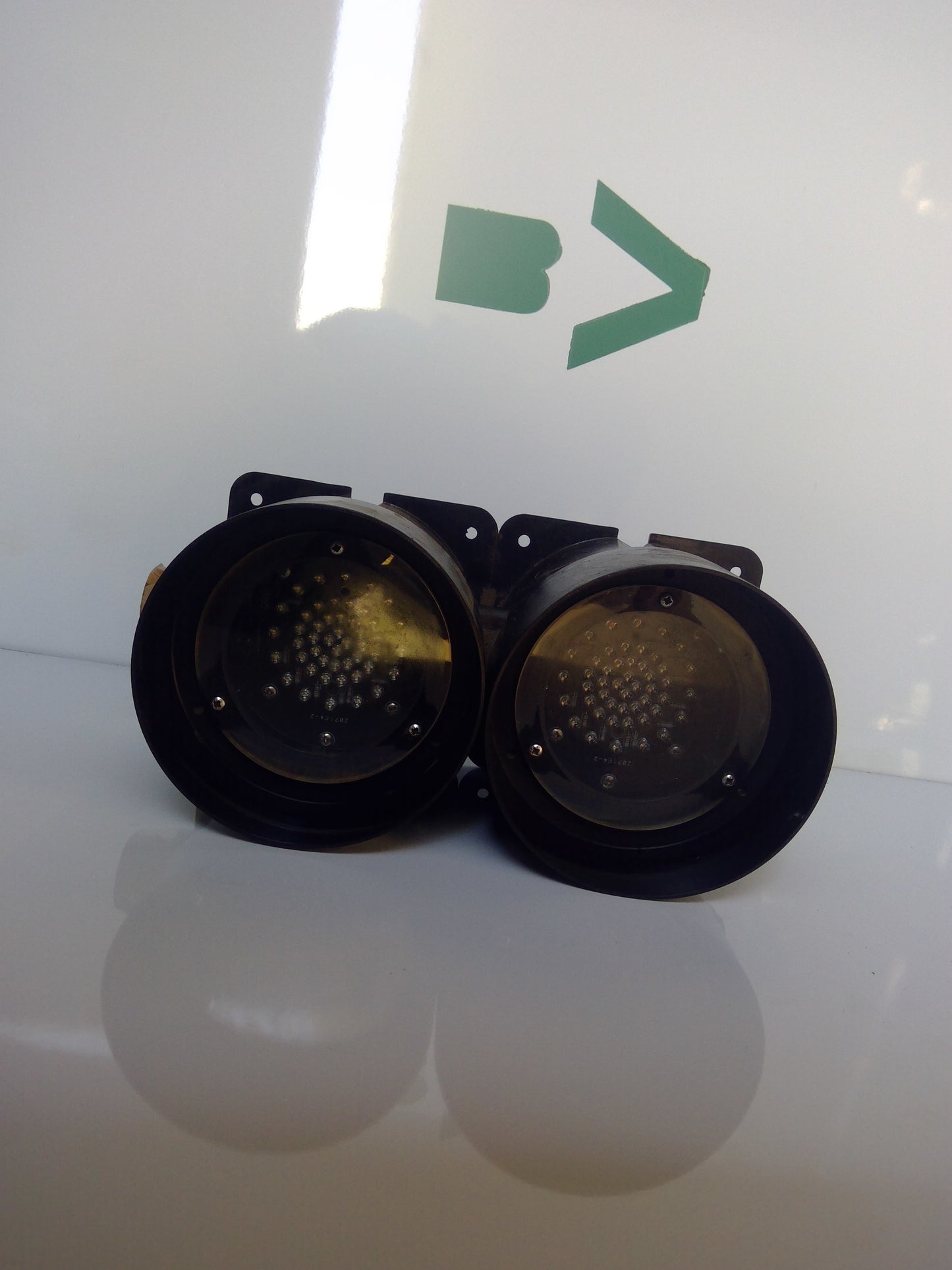

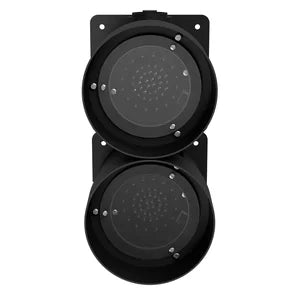

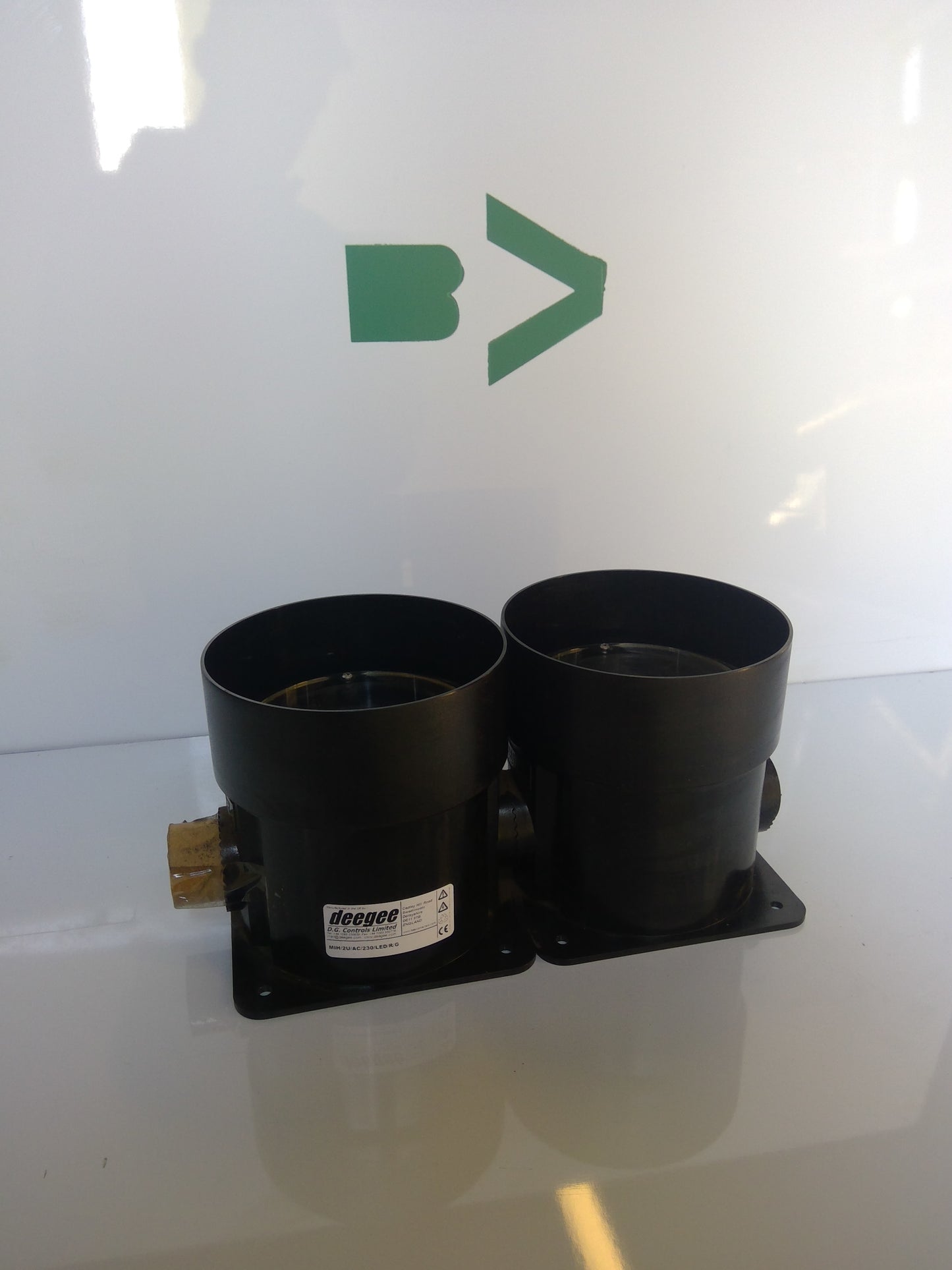

A dual pulsed LED uni-directional status indicator, combining Red and Green lights in a traffic light-style configuration. The unit features a durable black polycarbonate base and hood with plain clear polycarbonate lenses. An internal jumper allows for selectable static or flashing operation. Clear-package LEDs paired with clear lenses prevent the indicator from appearing illuminated under direct sunlight. The hood assembly is securely attached to the base using a gasket and three screws.
Additional information
| Weight (kg) |
1.4970 |
|---|---|
| Nominal Supply Voltage (V) |
24-36 |
| Voltage Min (V) |
21 |
| Voltage Max (V) |
41 |
| Supply Type |
DC |
| Lens Colour |
Clear |
| Signal Colour |
Red/Green |
| Base Colour |
Black |
| Length (mm) |
300 |
| Width (mm) |
150 |
| Height (mm) |
151 |
| Size (mm) |
300 x 150 x 151 |
| IP Rating |
IP65 |
| GTIN |
5060995741406 |
| User Selectable Functions |
Pulsed/Static |
| Nominal Current Draw (A) |
0.217 |
| Light Source |
LED |
| Number of Indicators |
2 |
| Number of Flash Functions |
2 |
| CE Approved |
Yes |
| Temperature Limits (C) |
-20 to +55 |
| Base Material |
Polycarbonate |
| Lens Material |
Polycarbonate |
| Order Unit |
1 |
| MOQ |
1 |
| Quantity Interval |
1 |
| Status |
Active |
| Commodity Code |
85318070 |
| Mounting method |
Surface mounting |
| Luminous Intensity (cd) |
285 (Red) / 1200 (Green) |
| Fuse (A) |
1 |
| Fuse Type |
TD |
| Fuse (Internal or External) |
Internal |
| Country of origin |
GB |
| RoHS |
RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date |
8th August 2024 |
| SVHC |
No SVHC present |
| SVHC Candidate List Date |
27th June 2024 |
