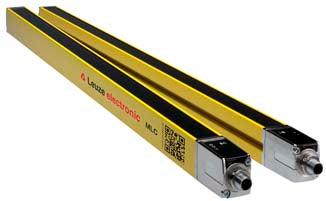

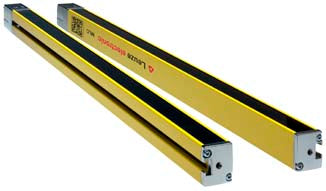

*USED* Leuze MLC500T30-1800 Safety light curtain
| Series |
MLC 500 |
| Device type |
Transmitter |
| Contains |
2x BT-NC sliding block |
| Application |
Hand protection |
| Functions |
Range reduction
Transmission channel changeover |
| Type |
4, IEC/EN 61496 |
| SIL |
3, IEC 61508 |
| SILCL |
3, IEC/EN 62061 |
| Mission time |
20 years, EN ISO 13849-1 |
| Resolution |
30 mm |
| Protective field height |
1,800 mm |
| Operating range |
0 ... 10 m |
| Synchronization |
Optical between transmitter and receiver |
| Light source |
LED, Infrared |
| Wavelength |
940 nm |
| Mean power of transmitter diode |
50 µW |
| Transmitted-signal shape |
Pulsed |
| LED risk group |
Exempt group (in acc. with EN 62471:2008) |
| Protective circuit |
Overvoltage protection
Short circuit protected |
| Supply voltage UB
|
24 V, DC, -20 ... 20 % |
| Current consumption, max. |
50 mA |
| Fuse |
2 A semi time-lag |
| Number of digital switching inputs |
1 Piece(s) |
| Type |
Digital switching input |
| Switching voltage high, min. |
18 V |
| Switching voltage low, max. |
2.5 V |
| Switching voltage, type. |
22.5 V |
| Voltage type |
DC |
| Function |
Control input range reduction |
| Number of connections |
1 Piece(s) |
| Function |
Machine interface |

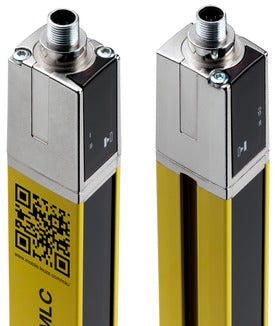

| Type of connection |
Connector |
| Thread size |
M12 |
| Type |
Male |
| Material |
Metal |
| No. of pins |
5 -pin |
| Permissible conductor cross section, type. |
0.25 mm² |
| Length of connection cable, max. |
100 m |
| Permissible cable resistance to load, max. |
200 Ω |

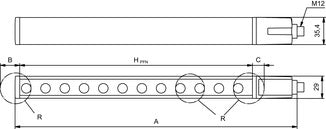

| Dimension (W x H x L) |
29 mm x 1,866 mm x 35.4 mm |
| Housing material |
Metal |
| Metal housing |
Aluminium |
| Lens cover material |
Plastic / PMMA |
| Material of end caps |
Diecast zinc |
| Net weight |
1,950 g |
| Housing colour |
Yellow, RAL 1021 |
| Type of fastening |
Groove mounting
Mounting brackets
Mounting on Device Column
Swivel mount |
| Type of display |
LED |
| Number of LEDs |
2 Piece(s) |
| Ambient temperature, operation |
-30 ... 55 °C |
| Ambient temperature, storage |
-30 ... 70 °C |
| Relative humidity (non-condensing) |
0 ... 95 % |
| Degree of protection |
IP 65 |
| Protection class |
III |
| Approvals |
KCs
S Mark
TÜV Süd
c TÜV NRTL US
c UL US |
| Vibration resistance |
50 m/s² |
| Test procedure for oscillation in accordance with standard |
IEC/EN 60068-2-6 |
| Shock resistance |
100 m/s² |
| Test procedure for shock in accordance with standard |
IEC/EN 60068-2-6 |
| US patents |
US 6,418,546 B |
