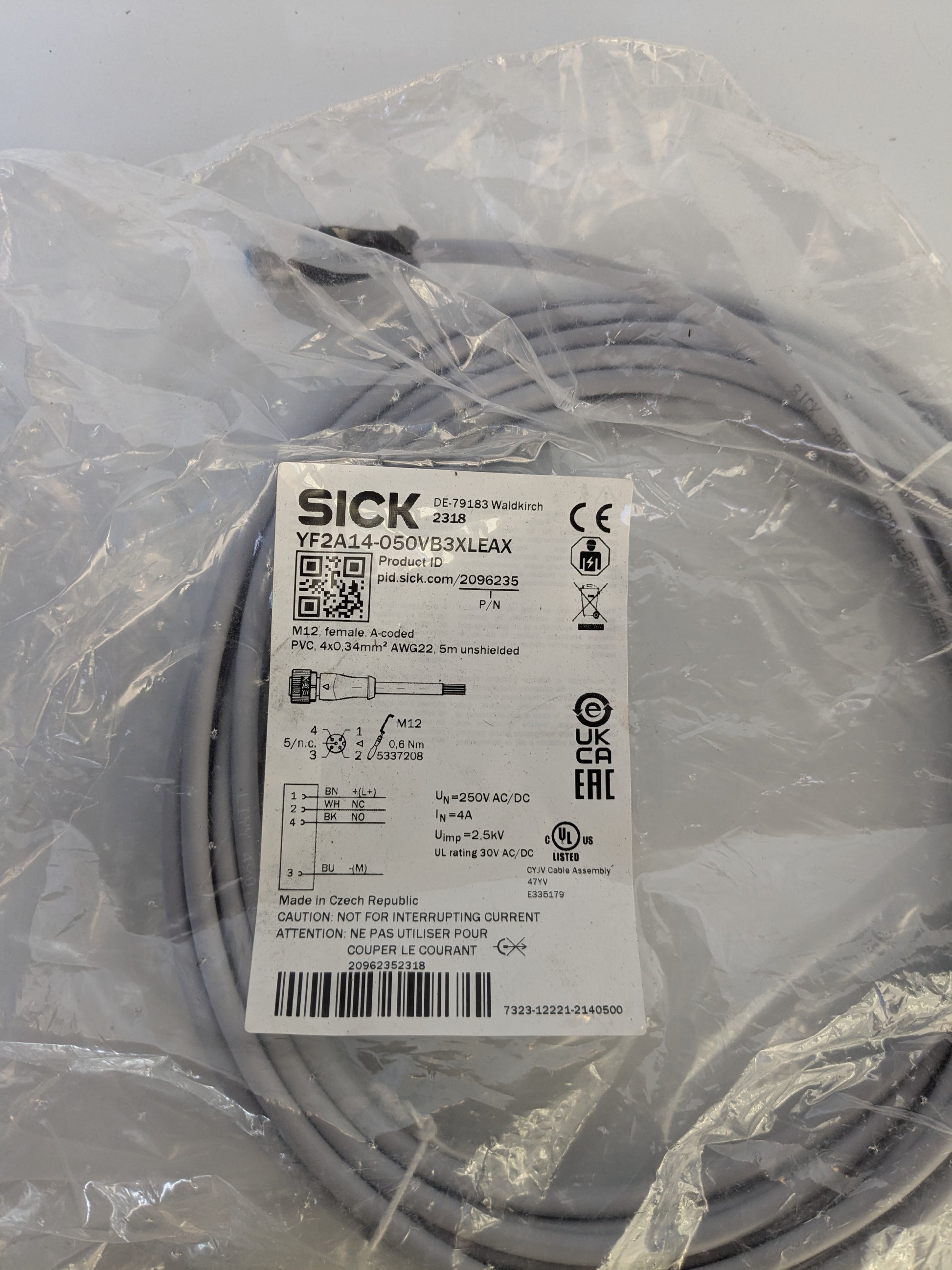

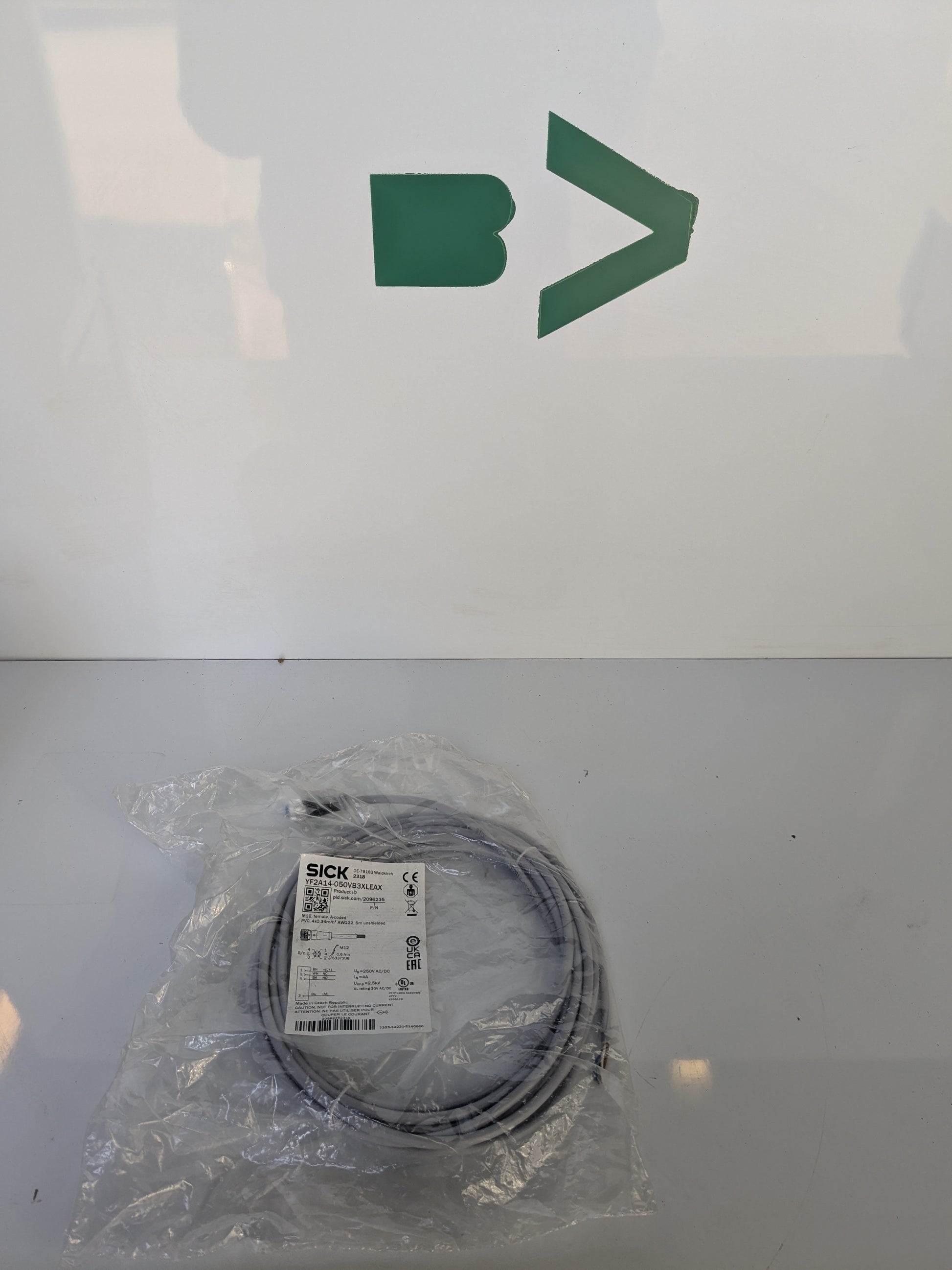

*NEW* SICK Straight Female 4 way M12 to 4 way Unterminated Sensor Actuator Cable, 5m

*NEW* SICK Straight Female 4 way M12 to 4 way Unterminated Sensor Actuator Cable, 5m

Accessory group Plug connectors and cables
Accessory family Connecting cables

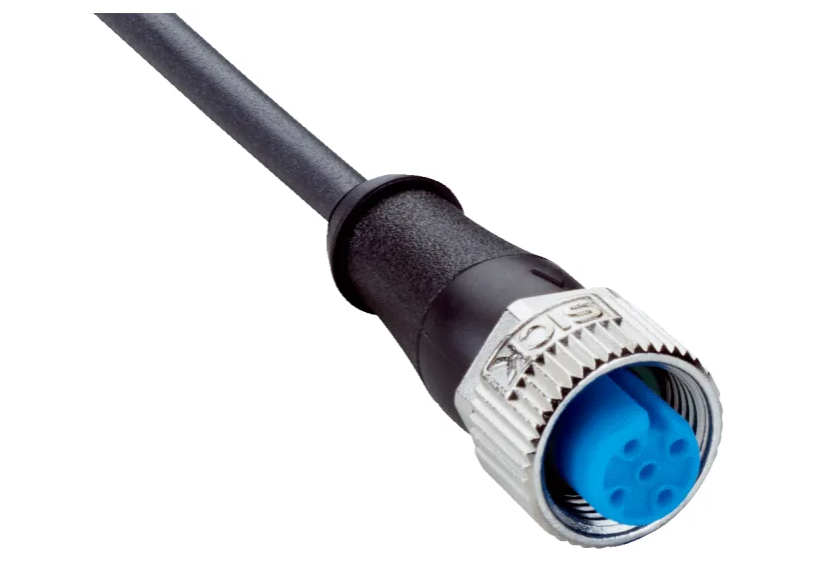

Connection type head A Female connector, M12, 4-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.5 mm
Conductor cross-section 0.34 mm²
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Drag chain operation > 10 x cable diameter
Bending cycles 10,000,000
Reference voltage ≤ 250 V DC
Rated impulse voltage 2.5 kV
Current loading 4 A
Traversing speed 3 m/s
Travelling distance 10 m
Acceleration ≤ 10 m/s²
